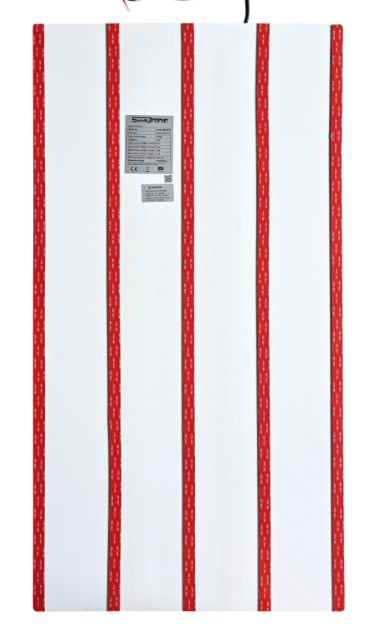

SWAYTRONIC - Solarpanel flexibel 160Watt ETFE
New
SWAYTRONIC
SWAYTRONIC - Solarpanel flexibel 160Watt ETFE
Measures:
1300x670x3 mm
Weight:
5
Kg.
Product number:
7640298330170
Availability:
on customer order
Delivery Time:
On request 3 - 6 weeks
CHF 309.00*
Accessories
Please select here conveniently other products from Accessories and Similar items and add them to your order by clicking on the shopping cart in the desired quantity.
Product information "SWAYTRONIC - Solarpanel flexibel 160Watt ETFE"
SWAYTRONIC - Solarpanel flexibel 160Watt ETFE
Die Vorteile im Überblick:
- Semiflexibles Solarpanel für den stationären wie auch mobilen Einsatz
- Monokristalline Solarzellen mit hohem Wirkungsgrad von 21.6%
- Geringe Aufbauhöhe von 3mm (ohne Anschlussbox)
- Anschluskabel mit 350cm Länge
- Vorverklebte 3M Klebebänder - Untergrund reinigen und direkt verkleben
Die semiflexiblen Solarpanel von Swaytronic sind mit Monokristallinen Solarzellen mit einem hohen Wirkungsgrad von 21.6% ausgestattet.
Durch die Flexibilität und der geringen Aufbauhöhe von 3mm lassen sich die Solarpanel von Swaytronic auch bei engen Platzverhältnissen und gewölbten Untergründen leicht montieren (Kleben/Verschrauben).
Der Anwendungsbereich liegt im stationären, wie auch mobilen Bereich. Einsetzbar für Caravan, Boote, Gartenhaus, Inselanlagen etc. . Die Anschlussbox ist IP65 geschützt und somit staubdicht und gegen Strahlwasser aus beliebigem Winkel geschützt.
In Kombination mit einem Solarladeregler und einer Speicherbatterie (LiFePO4) von Swaytronic kann so ohne grosse Vorkenntnisse ein autarkes Energiesystem realisiert werden.
Schäden und Folgen aufgrund einer nicht korrekten Vorgehensweise der Verklebung und Montage, sowie durch Verwendung nicht von Swaytronic verifizierten Materialien – sind generell von jeglicher Gewährleistung und Kompensationsansprüchen ausgeschlossen.
ACHTUNG: Die flexiblen Solarpanel von Swaytronic sind für Parallel- oder Serienschaltungen bis max. 3 Stk. zugelassen.
Lieferumfang:
1 x Solarpanel flexibel 160W
| Brand: | Swaytronic |
|---|---|
| Current at Pmax (Imp): | 5.34 |
| Height (mm): | 3 |
| Length (mm): | 1300 |
| Maximum power (Pmax) in watts: | 160 |
| Open system voltage (Voc): | 36.1 |
| Operating temperatures (°C): | -40 - 8 |
| Short circuit current (Isc): | 5.65 |
| Solar cell type: | Monocrystalline |
| Voltage at Pmax (Vmp): | 30 |
| Weight (gr.): | 4000 |
| Width (mm): | 670 |
Login
Warranty solar panel / mobile energy
Warranty solar panel / mobile energy
Swaytronic assumes a voluntary manufacturer's warranty of 2 or a maximum of 5 years* for the solar panel product portfolio with exceptions. The effective warranty period can be found in the respective product. The choice of replacement, repair or reimbursement of costs is at the discretion of Swaytronic (Schweiz) AG.
*For more detailed information and allocations, please refer to the corresponding data sheets / product specifications.
Further claims, especially for compensation of direct or indirect damages caused by the defect of the device, the costs incurred by the removal and installation or the lost profit are excluded.
Models which are equipped with a serial number will be recorded by us upon receipt and dispatch of goods and assigned to the end customer.
Removing the serial number (sticker/inscription) will void the warranty.
Mounting of flexible solar panels and ABS solar mounting systems
Swaytronic offers tested and verified adhesive sets for bonding the flexible solar panel and ABS solar mounting systems.
SWAYTRONIC Adhesive Set-Solar V1 Article no. 7640370541517
SWAYTRONIC Adhesive Set-Solar V2 Article no. 7640370541524
Damage and consequences due to improper procedure of bonding and assembly, as well as due to use of materials not verified by Swaytronic - are generally excluded from any warranty and compensation claims.
Exclusion:
Not covered by warranty are damages, defects and malfunctions caused by:
(a) force majeure (e.g. lightning, overvoltage, thunderstorm, flood, fire).
b) normal wear and tear
c) mechanical impact or force such as transport damage, fall, deformation,
d) improper, abusive or negligent handling or use,
e) faulty installation or commissioning
f) malfunction of other connected devices,
g) non-observance of safety precautions,
h) Independent modifications, programming or repairs,
i) use not in accordance with the operating instructions or otherwise improper handling of the goods.
In addition, normal wear and tear or other defects do not affect the basic operation of the product.
External scratches, stains or natural mechanical wear and tear do not constitute a defect of the product.
You can find the complete warranty conditions in our AGB`s:
